Transfer Barrier Accumulators

Transfer barrier bladder accumulators have the same basic construction as standard bladder accumulators with the exception of the gas end. The gas end incorporates a connection point (referred to as a “coupler”), that has a variety of optional port sizes. This side of the transfer barrier is designed for permanent connection for a fluid or inert gas via hose or seamless tubing.

These products are seen often in the following applications:

  1. Subsea hydrostatic pressure compensation
  2. To separate two immiscible fluids for pressure transfer
  3. Remote adjustment of nitrogen gas precharge pressure
3000 PSI TRANSFER BARRIER MODELS
PARTNOMINAL SIZE (GAL) GAS VOLUME (IN3)DIMENSIONS (IN.)
WEIGHT (LBS.)
ABCDE
A1QTTBF31000.254912.04.57.62.11.610
A1TBF3100121418.06.711.03.52.432
A1.5TBF31001.532822.56.615.83.52.441
A2.5TBF31002.553622.09.015.53.53.078
A5TBF31005110634.09.027.53.53.0118
A10TBF310010210155.09.048.53.53.0214
A11TBF310011235961.09.054.03.53.0232
A15TBF310015316579.09.072.03.53.0298
5000 & 6000 PSI TRANSFER BARRIER MODELS
PARTNOMINAL SIZE (GAL) GAS VOLUME (IN3)DIMENSIONS (IN.)
WEIGHT (LBS.)
ABCDE
A1QTTBF51000.254914.44.67.62.11.212
A1TBF6100121419.07.211.43.52.439
A2.5TBF61002.553625.09.615.53.93.0120
A5TBF61005110637.09.627.53.93.0200
A10TBF610010210158.09.648.53.93.0310
A15TBF610015316582.09.672.03.93.0470

TRANSFER BARRIER COUPLER OPTIONS

COUPLER OPTIONS
PART NUMBERDESCRIPTION
AI-TB-321-C 3/4” NPT
AI-TB-321-E 1 1/4” NPT
AI-TB-321-F 1/2” NPT x 3
AI-TB-321-G 1/4” NPT
AI-TB-321-O 3/4”-16 SAE
AI-TB-321-Q 7/16” SAE
AI-TB-321-R 1 1/16” SAE
AI-TB-321-X 3/8” Medium Pressure x 3
AI-TB-321-Z 1/4” NPT x 1/2” NPT
AI-TB-321-AC 1/4” Medium Pressure

For accumulator ordering purposes, use the letter code after the last hyphen to replace the ? in the part number.  For example A5TB?3100 -> A5TBG3100

FLUID STRAINERS AND DEPTH COMPENSATION

Used primarily as a seawater strainer for subsea compensators. Typically attaches to the fluid port of a transfer barrier accumulator.

316 SS STRAINERS
PARTTHREAD
AI-S-440-SS 3/4” NPT
AI-S-441-SS 2” NPT
AI-S-442-SS 1-1/4” NPT
AI-S-444-SS 1” NPT









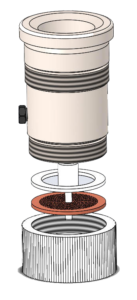

D.C Port Assembly
